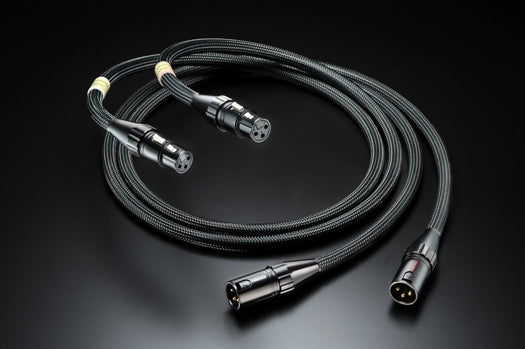

Furutech Evolution Audio II (XLR) Audio Interconnect -1.2 Pair (XLR>XLR)

Furutech Evolution Audio II (XLR) Audio Interconnect

• EVOLUTION II BALANCED INTERCONNECT 1.2M PAIR (XLR>XLR)

Evolution II, an update of the extremely well received Evolution series, incorporates newly-engineered anti-resonance cable clamps as well as an upgraded dielectric/insulation of RoHS-compliant Pb-free PVC incorporating anti-resonance carbon particles in its manufacture. Our Pure Transmission philosophy
incorporates rhodium-plated pure copper conductors, even the IEC connectors of the Evolution II power cord. No detail too small, every element of signal and power transmission engineered to within an inch of its life, treated with advanced processes, and turned out with beautiful design and build quality to enrich every music experience.

Features

Evolution II, an update of the extremely well received Evolution series, incorporates newly-engineered anti-resonance cable clamps as well as an upgraded dielectric/insulation of RoHS-compliant Pb-free PVC incorporating anti-resonance carbon particles in its manufacture. Our Pure Transmission philosophy
incorporates rhodium-plated pure copper conductors, even the IEC connectors of the Evolution II power cord. No detail too small, every element of signal and power transmission engineered to within an inch of its life, treated with advanced processes, and turned out with beautiful design and build quality to enrich every music experience.

・High performance beautifully engineered gold-plated [FP-701M(G)/FP-702F (G)] XLR connectors
・XLR connector pins beautifully engineered copper alloy α (Alpha)-conductor with PBT dielectric
・XLR body and housing made of nonmagnetic copper alloy
・Shield 1 0.12 mm α (Alpha) conductor wire braid
・Cable insulated with polypropylene reducing capacitance and damping vibration
・Results in greater resolution, clarity, powerful dynamics, and an ultra-quiet soundstage in which music develops more fully without artificial upper-frequency “presence region” glare

Specifications

・Conductor：α(Alpha) conductor （80 pcs／0.18 mm）,Diameter：1.86 mm
・Insulation：Polypropylene (Red, White) ,Diameter：2.46 mm
・Twisting：2 Cores Twisted Together with Cotton Yarn.
・Barrier Layer：Non-woven Fabric（Warp）, Diameter：5.0 mm Approx.
・Shield：α(Alpha) conductor 0.12 mm Braid, Diameter：6.0 mm Approx.
・Sheath: Flexible PVC (Dark Green), Diameter：9.0 mm
・Jacket：Nylon Yarn Braid, Diameter：10.0 mm Approx.

Electrical Properties of Cable / Test Method

・Max. Conductor Resistance 10.0 Ω／km,JISC3005 4.4 20℃
・Min. Insulation Resistance 1000 MΩ‧km,JISC3005 4.7.1 20℃
・Dielectric Strength AC. 500 V／1 min.,JISC3005 4.6 a
・Electrostatic Capacitance Approx 42 PF／m,at 1 KHz
・Characteristic Impedance Approx 120 Ω,at 100 KHz
