Product Details

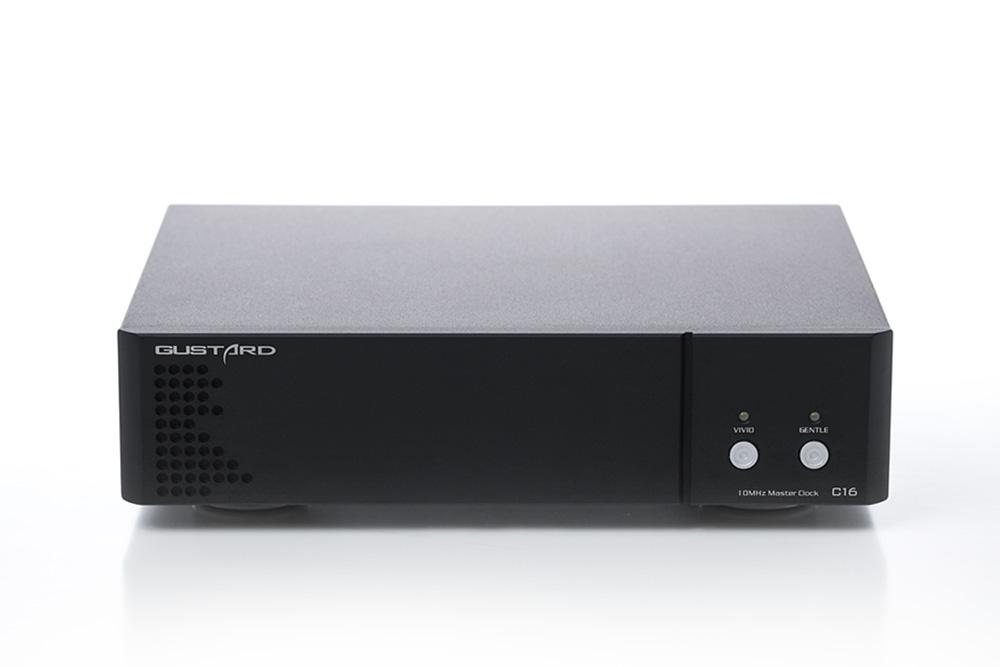

Costa's C16 clock technology features:

• C16 is a 10M high precision low noise clock generator;
• The new custom model SC cut OCXO, which is a mature product line of the crystal industry, has stable quality;
• True low jitter design with low near-end phase noise. In fact, the measured performance is more than two orders of magnitude higher than the traditional SPXO femtosecond crystal oscillator;
• With six BNC interface outputs (3+3), it is divided into two output types: direct output and isolated output.
• With square wave output mode, compatibility with back-end devices is better than with sine wave output;
• Optimized objective performance and subjective listening in the R&D process for the Gothic U16 and future audio digital source devices;
• A good price-performance OCXO is used to achieve a good balance between performance and price. C16 has both subjective and objective audio performance far beyond the traditional SPXO femtosecond crystal.



Vivid and Gentle output (Vivid recommended)









Strict design, reasonable layout, neat work, solid materials.





The new custom model SC cut OCXO, which is a mature product line of the crystal industry, has stable quality;



 Shaping ,buffer, output



Discrete power supply, low ripple, low temperature drift, fast response





Built-in audio dedicated toroidal transformer



Standard clock line





Other parameters:

• Output amplitude: 7dBm @50 Ohm
• AC power supply: AC 115V/230V 50/60Hz
• Machine power consumption: <15W
• Body size: width 220mm* height 50mm* depth 170mm (excluding protruding parts)
• Packing size: width 285mm* height 85mm* depth 270mm
• Weight: 2.5Kg (including packaging)
