Product Details

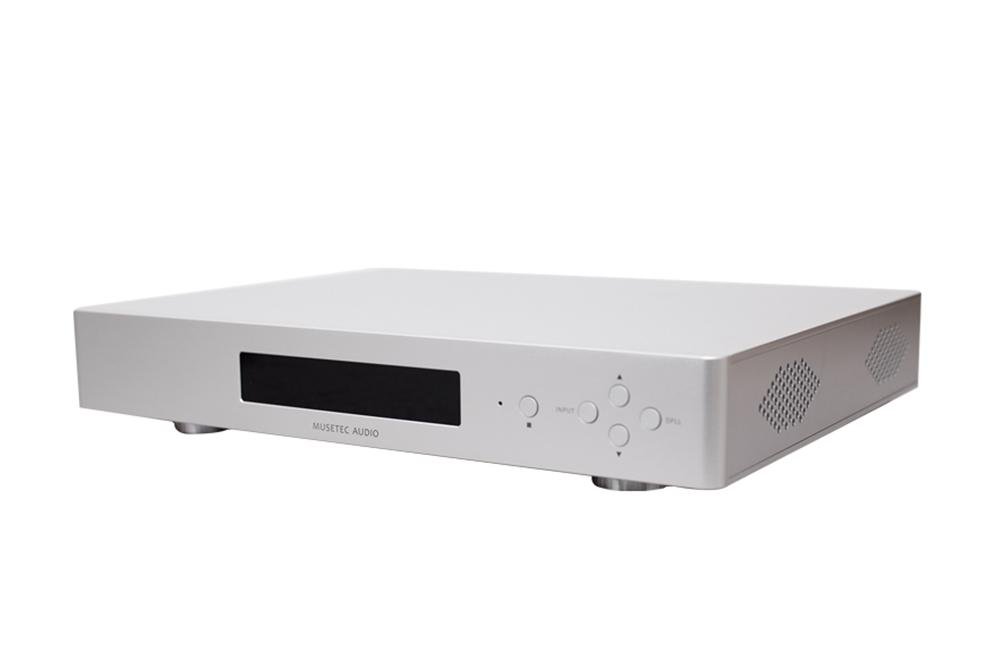

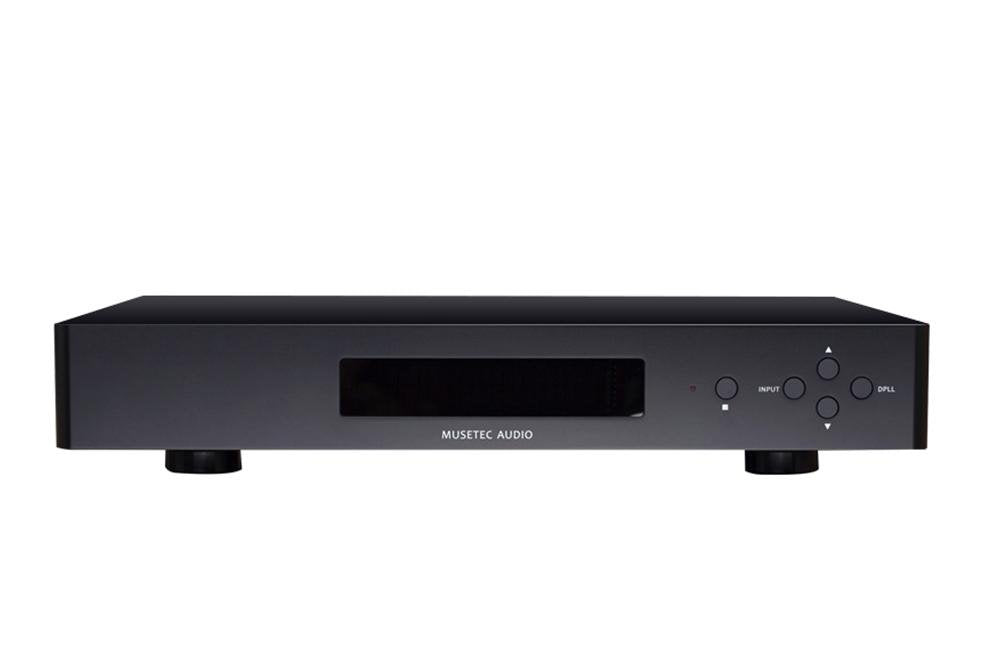

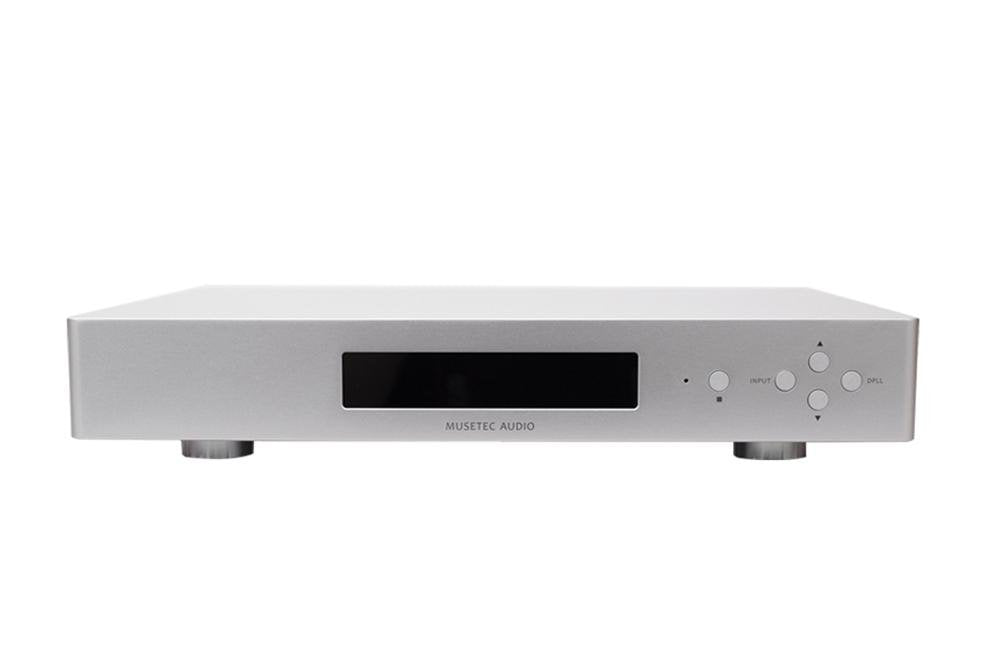

L.K.S MH-DA005 9038Pro Dual Mono DAC – Ultra High-Performance Digital-to-Analog Converter

Unleash world-class digital performance with the L.K.S MH-DA005 DAC, a reference-grade converter featuring dual ESS ES9038PRO chips in a fully balanced, dual-mono configuration. Engineered for uncompromising sound quality, it blends meticulous circuit design, premium components, and audiophile-focused features to deliver an immersive and lifelike listening experience.

---

🔧 Key Features & Technical Highlights

• Dual ES9038PRO DAC Chips for maximum channel separation and resolution

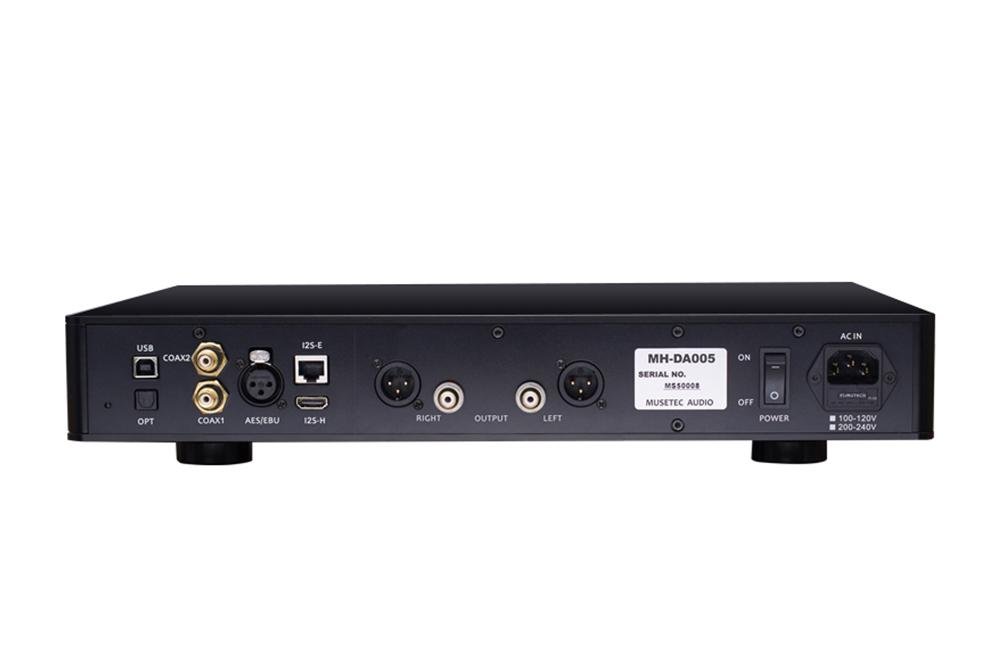

• Multiple Inputs: USB, Coaxial x2, Optical, AES/EBU, I2S-E, I2S-H

• USB Support: PCM 44.1kHz–384kHz, DSD64–DSD512

• I2S Support: PCM up to 384kHz, DSD512, DoP64

• Coaxial, Optical & AES/EBU: PCM up to 192kHz, DoP64

• Outputs:

  • RCA Single-Ended: 2Vrms

  • XLR Balanced: 4Vrms

• Digital Volume Control with 0.5dB attenuation steps

• User-Selectable Filters, DPLL settings, and DSD channel swap

• DoP Mode & Enhanced Mode Toggle

• Large VFD Display with adjustable brightness and auto-dim function

• Fully Functional Remote Control with standby power

• Frequency Response: 0–20kHz ±0.2dB

• Dynamic Range: >136dB

• THD+N: <0.0002%

• Stereo Separation: >120dB

---

💎 Premium Audiophile Design

• Advanced Regenerative Power Supply with 18-channel ultra-low noise regulators

• 4 Ultra-Low Jitter Master Clocks

• Mundorf, Audionote, GAD & MIT Capacitors for smooth, clean power delivery

• Fully Discrete Output Stage – balanced and single-ended paths with low-drift resistors

• Tellurium Copper RCA Terminals with Gold-Silver alloy leads

• Pure Silver Jensen Internal Wiring

• Furukawa FI-03G Power Connector

• 6-Layer Heavy Metal PCB for noise isolation

• Premium All-Aluminium Chassis – sturdy and acoustically inert

• Size: 430 × 350 × 78mm

• Weight: 9.0 kg

• Power: 240V (AU Model)

---

📦 What’s in the Box

• Musetec DAC Unit

• Remote Control

• USB Cable

• US Standard Power Cord

• T2 Hex Key (for remote battery compartment)

• USB Flash Drive with User Manual (digital version only)

• Warranty Card

---

Designed for audiophiles who demand no compromise.
From DSD512 capability to a hand-selected analog stage and exotic passive components, the Musetec 9038Pro DAC sets a new benchmark for high-fidelity digital playback.
