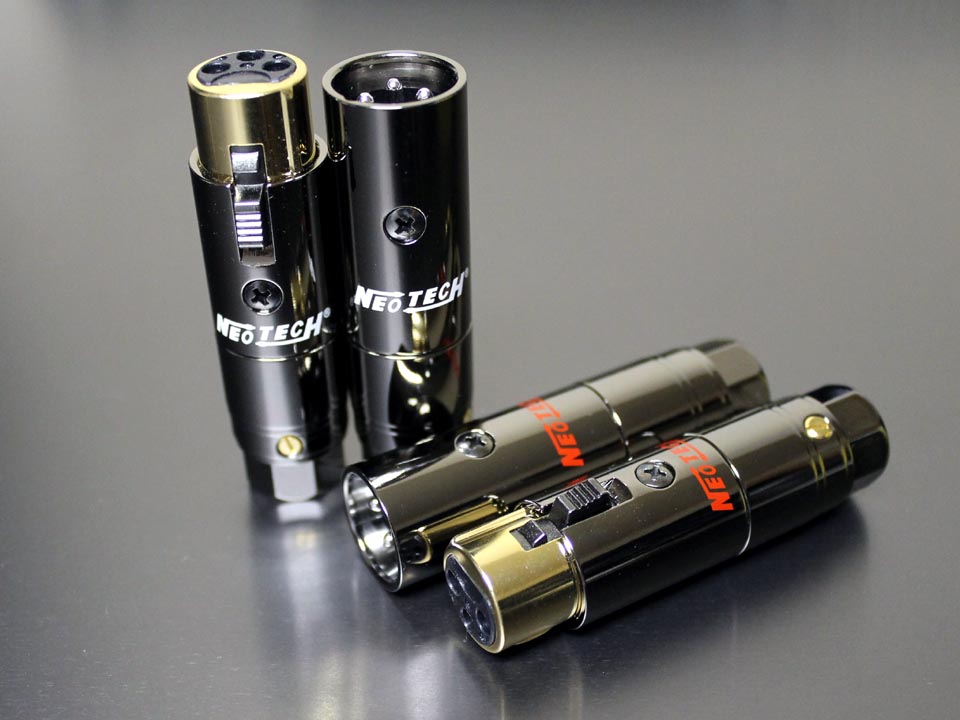

Made of high-purity UP-OCC Copper with a thick gold plate. Very high-end, beautifully constructed connectors. Cryogenically treated. Can receive cable up to 13mm in diameter. Clear insulation sleeve provided. Cable held in place via 2 grub screws. Solder connection required. Overall length 68mm, widest diameter 19mm. XLR solder pins can receive cables up to 1.3mm in diameter.
PRICE set of 4- 2 white, 2 red markings of which 2 are female and 2 are male plugs.
Technical characteristics
Specifications
Product type
XLR connectors
Contacts material
UP-OCC copper
COntacts plating
Silver 24K gold
Treatment
Cryogenic
Body material
Anodized metal
Monting type
To weld
Min./max. cable diameter
7.5 - 13mm
Body length
66mm
Body diameter
Ø19mm
General
Package
2x XLR NEOTECH NEX-OCC II male connector 2x XLR NEOTECH NEX-OCC II female connector
