SOUNDAWARE A300 Music Streamer & Headphone Amplifier
Pickup available at Dispatch
Usually ready in 24 hours
✔ Free Shipping Australia-Wide
Orders ship fast from Melbourne
Dispatched same or next business day
Product Details
Specifications:Weight: 7kg-10kg
Size: 430* 200* 88mm
Power: 60W(MAX)
Fuse: 0.5A(Soundaware customized), built-in high performance filter
Power Supply: 50HZ-60HZ/220-240V
50HZ-60HZ/1 10-130V ((Soundaware customized HIFI power IEC socket)
Colors: Moonlight Silver + Jade Black
THD +N : 0.0006% (XLR)
Dynamic Ratio: 118db (XLR)
Background Noise: -135db(XLR)
Headphone AMP Output MAX Power( Balanced, THD<0.01%):
32Ω: 1500mw*2
200Ω: 1750mw*2
300Ω: 790mw*2
Input:
SD Card Socket: Theoretical 2TB, 128G under real test. Support FAT32, EXFAT, NTFS format.
USB 2.0 High Speed*2 (Type A): 500MA*2 high-performance linear power supply, support FAT32, EXFAT, NTFS format, up to 2TB single partition, no limitation for HDD.
100MBPS Hi gh-Performance Duplex Network Interface: Support DLNA, SAMBA(NAS),AIRPLAY.
HIFI Level Bluetooth: Real-timely Supports APTX and other general Bluetooth standard audio playback protocol.
High-Performance USB Interface based on FPGA: Support 32~ l 92KHZ, DSD64~DSD128 - DSD 128 need install THESYCON driver)
Optical Input: 24BIT PCM 96KHZ.
Coaxial Input: 24BIT PCM 192KHZ 0.5V P-P.

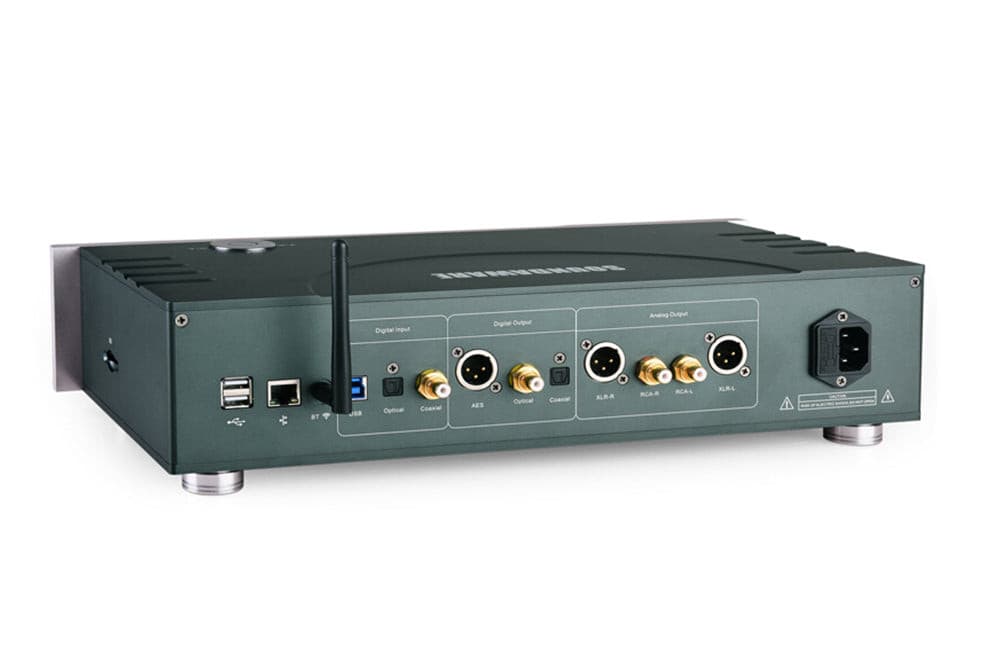

Output:
AES: 5VP-P 24BIT 192KHZ(DSD DOP)
RCA Coaxial: 0.5V P-P 24BIT 1 92KHZ(DSD DOP)
Optical: 24BIT 192KHZ( Receiver decoder need to be high speed optical head, or it can only support up to 96KHZ, DSD DOP)
RCA*2: 2.6V RMS( adjustable electrical level)
XLR*2: 5.2V RMS( adjustable electrical level)
Four-core XLR Full Balanced Headphone Amp output
