Product Details

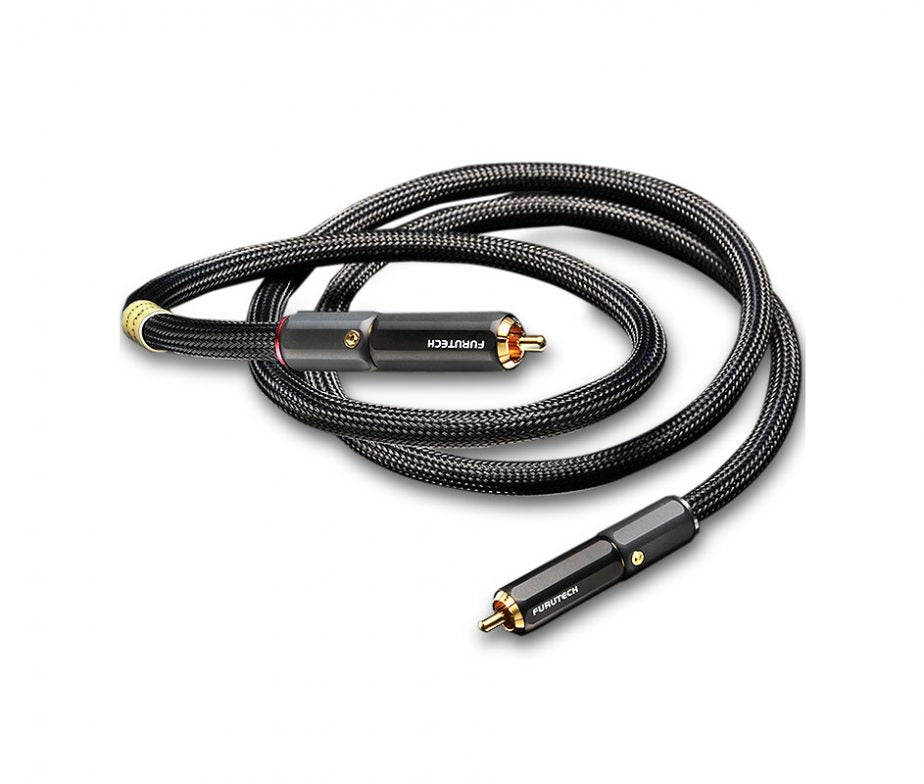

Furutech Evolution II Digital Cable (RCA)

• EVOLUTION II COAXIAL DIGITAL CABLE 1.2M SINGLE (RCA>RCA)

Updated Evolution II Audio Cables – Pure Transmission Performance for Value Conscious Audiophiles

Furutech’s Evolution Series was awarded The Absolute Sound Editors’
Choice Award in both 2007 and 2008

(Type: Hyper-Coaxial Interconnects)
Evolution II Digital (XLR) (RCA)• 1.2meter
Feature US High Performance Addiction • Audiophiles Want What They Need

All enthusiasts are looking for the same things: Verisimilitude, a sense of engagement promoting suspension of disbelief, a veritable immersion in audio and video experience. To detach without effort from modern time’s exigencies requires meticulous preparation of the entire playback chain, especially cables, power cords and AC distribution.

Evolution II, an update of the extremely well received Evolution series, incorporates newly-engineered anti-resonance cable clamps as well as an upgraded dielectric/insulation of RoHS-compliant Pb-free PVC incorporating anti-resonance carbon particles in its manufacture. Our Pure Transmission philosophy incorporates rhodium-plated pure copper conductors, even the IEC connectors of the Evolution II power cord. No detail too small, every element of signal and power transmission engineered to within an inch of its life, treated with advanced processes, and turned out with beautiful design and build quality to enrich every music experience.

FEATURES

・Finished with beautifully engineered High Performance FP-110 (G) RCA connectors or FP-701 M (G) and FP-702 F (G) XLR Connectors

・RCA centre pin 24k gold-plated nonmagnetic α (Alpha)-OCC conductor with Teflon dielectric

・RCA connector backbone composed of nonmagnetic 24K gold-plated eutectic cast copper alloy with
beautifully finished nonmagnetic copper alloy outer locking shell

・Shield: 0.12 mm α (Alpha) conductor wire braid

・Cable insulated with polypropylene reducing capacitance and damping vibration

・Results in greater resolution, clarity, powerful dynamics, and an ultra-quiet soundstage in which
music develops more fully without artificial upper-frequency “presence region” glare

Specifications

Evolution II Digital (RCA) • 1.2m (3.9ft)
・37-strand α (Alpha) -OCC Conductor・0.16mm, 1.15mm diameter
・Insulation-1:　Specifical grade Polyethene Skin 1.17mm diameter
・Insulation-2: Air-formed PE(Inner)+ Specifical grade Polyethene Skin ,5.5mm diameter
・Shield: 　0.12mm braided α (Alpha) Conductor ,6.3mm diameter
・Sheath: 　RoHS Compliant flexible PVC (Dark Blue) 8mm diameter
・Jacket: 　Nylon yarn braid approx. 9.5mm
・Connectors:　FP-110(G) RCA.

Evolution II Digital (XLR) • 1.2 meter (3.9ft)
・α (Alpha) μ–OFC Conductor 1.3mm diameter
・Insulation: Polypropylene (White/Red) 2.4mm diameter
・Shield: 0.12mm α (Alpha) Conductor wire braid
・Sheath: RoHS Compliant flexible PVC (Dark Green) 8mm diameter
・Jacket: Nylon yarn braid approx. 9.5mm
・Connectors: FP-701 M(G) and FP-702 F(G) XLR

Electrical Properties of Cable / Test Method
・Max. Conductor Resistance 25.1 Ω／km,JISC3005 6 20℃
・Min. Insulation Resistance 1000 MΩ‧km,JISC3005 9.1 20℃
・Dielectric Strength AC. 1000 V／1 min.,JISC3005 8
・Electrostatic Capacitance Approx 56 PF／m,at 1 KHz
・Characteristic Impedance 75 ± 5 Ω,at 10 MHz
