Description:

The Little Dot MK VIII SE further specializes our Little Dot MK VI+ platform for no-compromise performance with high impedance headphones. Fully balanced architecture with single-ended headphone functionality as well, the Little Dot MK VIII SE is also dual-mono with independent amplifiers with their own isolated toroidal transformer power supplies. An output capacitor-less design minimizes components in the signal path, delivering a "pure" signal free from unwanted distortion and color. The Little Dot MK VIII SE's sound signature is designed to be provide a reference-level of transparency with a touch of tube warmth and tonal richness. With 60V p-p voltage swing, dynamic range and impact is both effortless and thunderous. Low frequencies extend deep with slam and authority, yet remains tight and musical. The Little Dot MK VIII SE is designed to be used with high impedance headphones like Sennheisers (HD600, HD650, HD800) and Beyerdynamics.

Technical Specifications:

• Fully Balanced, Dual-Mono Architecture
• OCL (Output CapacitorLess) in Class-A
• Vacuum Tubes: 2x 12AT7, 4x 6H30PI

• Balanced: 2x 3-pin XLR
• Single-ended: 2x RCA

• Balanced: 4-Pin XLR
• Balanced Pre-Amp: 2x 3-pin XLR
• Single-ended: 1/4" (6.35mm) TRS Stereo jack

Frequency Response:

• 5Hz - 80KHz (-3dB)
• 10Hz - 30KHz (-1dB)

Input Impedance: 50K ohms

Pre-Amplifier Output Impedance: 600 ohms

THD+N:

• 0.01% (2Vrms @ 1000Hz)
• 0.03% (10Vrms @ 1000Hz)
• 0.2% (20Vrms @ 1000Hz)
•

Signal-to-Noise: 96 dB

User Selectable Gain Settings: Low (All Headphones) and High (suitable for AKG K1000)

Power Output:

• 2W per channel @ 600 ohms
• 1W per channel @ 300 ohms

Voltage Swing: 60V p-p

Power Consumption: 110 VA

Other:

Metric: 350mm (length) by 290mm (width) by 140mm (height)

Imperial: 13.8 inches (length) by 11.4 inches (width) by 5.5 inches (height)

Weight: 9.6 kg or 21 lbs

Available in either 110-120VAC or 220-240VAC

One Year Official Little Dot Warranty

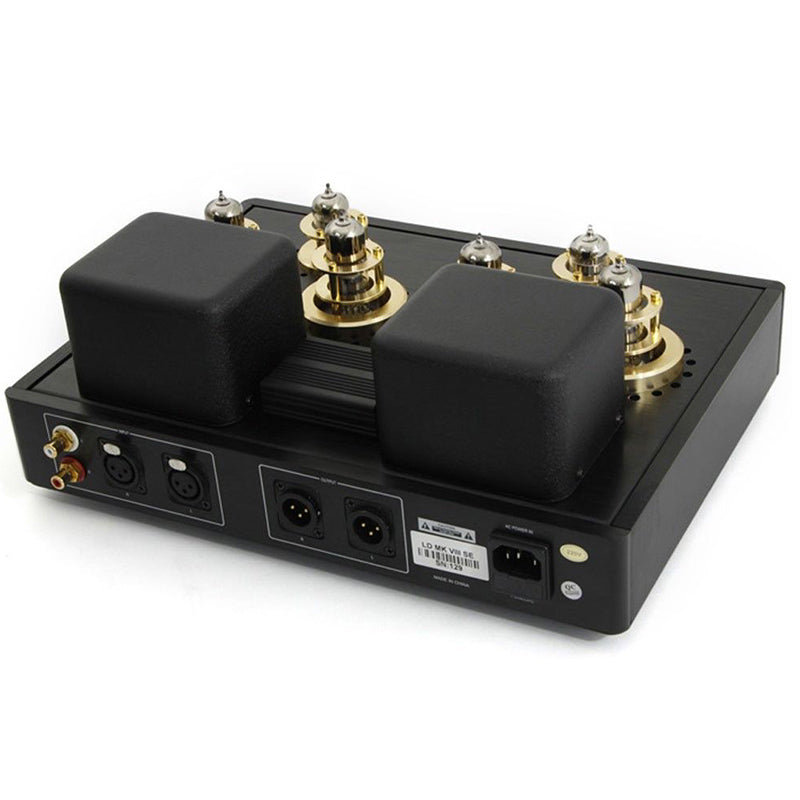

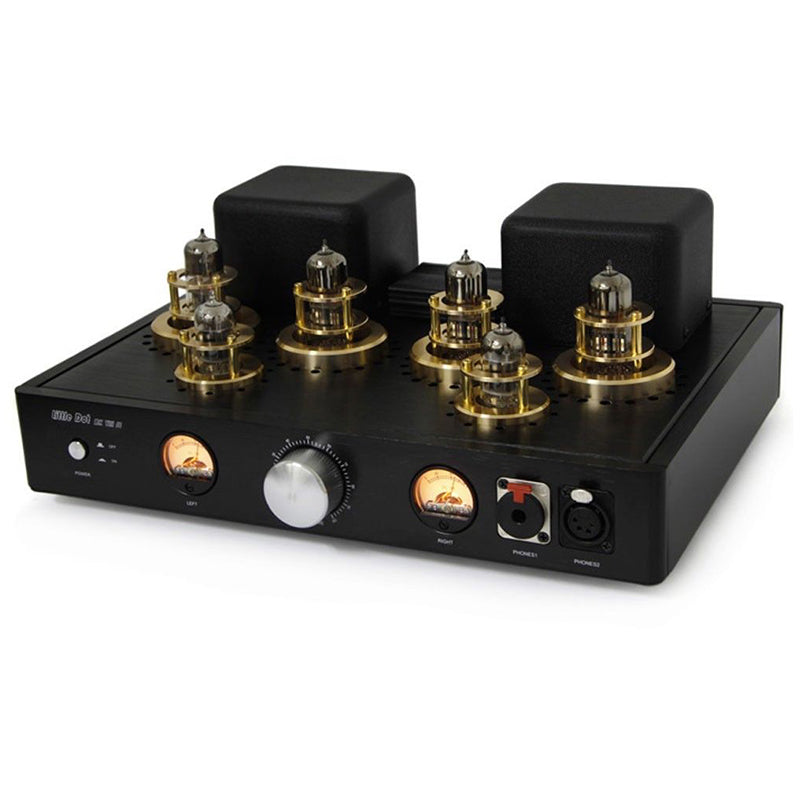

 product images
