Product Details
NEOTECH NEI-2001
Interconnect Cable UP-OCC Pure Silver - Shielded PTFE Ø11mm

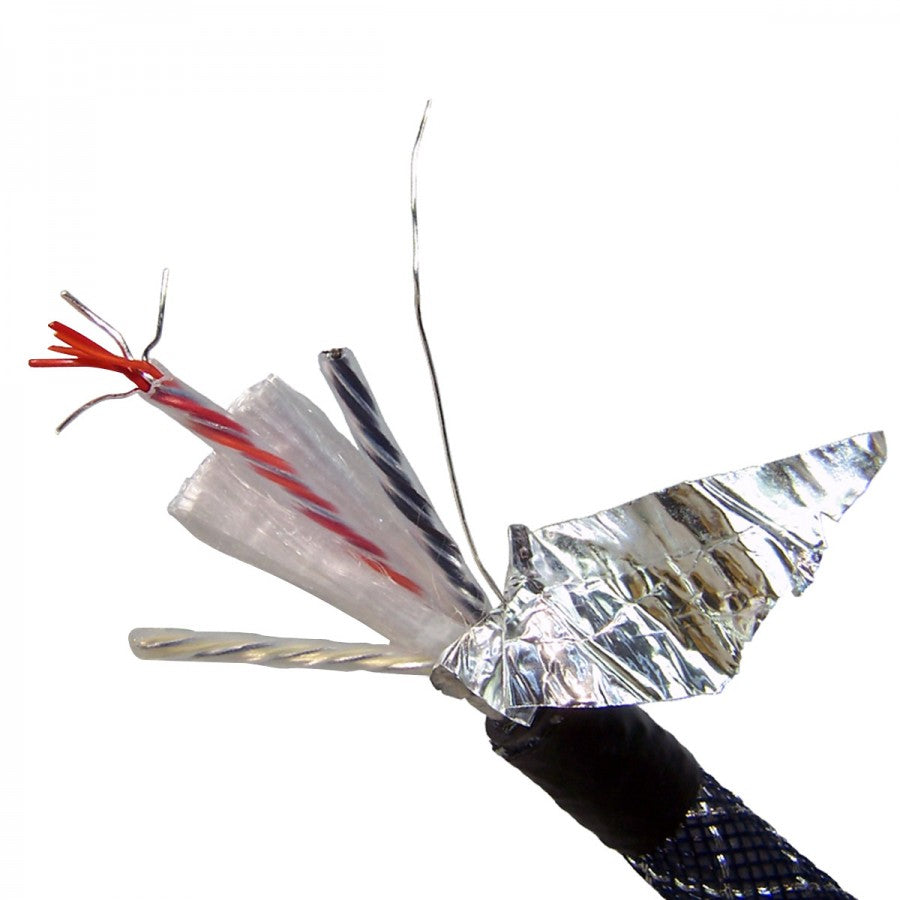

The Neotech NEI-2001 cable consists of 3 pure UP-OCC silver conductors with shielding. It is perfectly suited for the design of high-end, high-performance XLR or RCA cables. Each of these conductors is composed of 3 silver wires and 4 PTFE wires, all covered with another PTFE sheath for a diameter of 2.65mm. Each silver strand has a different diameter and cross-section: 0.4mm 26AWG, 0.51mm 24AWG and 0.65mm 22AWG. The 3 conductors are placed in a PP filling. Around this filling, a shield composed of an Aluminium-Mylar sheet considerably reduces EMI/RFI interference and can be welded simply with a 0.57mm diameter wire with a 23AWG cross-section. Finally, a thick 2mm PVC sheath and a braided sheath finish this cable with a total outside diameter of 11mm.
Technical characteristics
| SPECIFICATIONS | ||
|---|---|---|
| Product type | Interconnect cable | |
| Conductors material | UP-OCC Silver | |
| Number of conductors | 3 | |
| Conductor composition | 4x PTFE strands 1x Silver strand 0.129mm² 1x Silver strand 0.205mm² 1x Silver strand 0.258mm² |
|
| Conductors insulation material | PTFE | |
| Shielding material | Aluminium-Mylar Foil | |
| Filling material | PP | |
| External sheaths | PVC sheath + Braided sheath | |
| Total external diameter | 11mm | |
| Color | Black | |
| Length | Sold per meter | |
