Silent Angel Bonn N8 Pro Network Switch

$1,813.88 AUD $1,614.36 AUD

Silent Angel Bonn N8 Pro Network Switch

$1,614.36 AUD $1,813.88 AUD

Pickup available at Dispatch

Usually ready in 24 hours

✔ Free Shipping Australia-Wide

Orders ship fast from Melbourne

Dispatched same or next business day

Product Details

Silent Angel Bonn N8 Pro

Audiophile Shop, Australia Stock, Authorised Reseller, Local Warranty Full Support

Audiophile Grade Audio Network Switch That Unifies Digital Music With The Ultimate HiFi Experience

Please contact today arrange a demonstration!

Why Bonn N8 Pro?

Bonn N8 Pro is born for music lovers who want to build the ultimate HiFi network and pursue the purest audio quality possible.

Unique and Advanced Designs

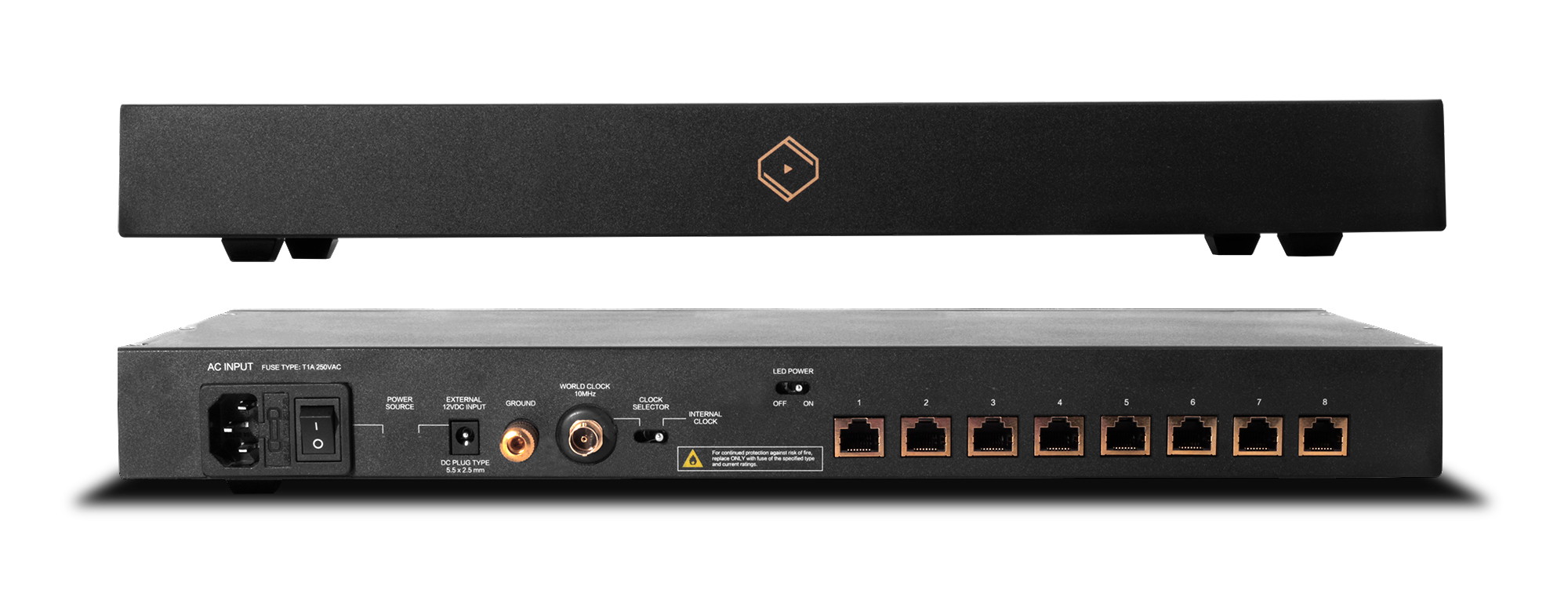

Eight gold-plated enclosed Gigabit Ethernet Ports with spaced out ports to physically reduce possible signal interference.
Class-leading Radar-Grade internal switching power supply module, which is exclusive to noise-sensitive acoustic equipment.
Perfectly timed data transmission.
TCXO (Temperature Compensation Crystal Oscillator) greatly lowers network latency issues and jitter effects.

Advanced Options For Audiophiles

An additional DC power jack (12V) to bypass the internal switching power module and to connect an external linear power supply for upgrade.
A gold-plated ground connector (banana terminal) for a grounding box to further lower power noise.
LED light switch which enables users to turn off the port status indicator.
Class-leading clock receiving module for an external clock input.
Two available N8 Pro models: One with an 10MHz external World Clock input, and one without.

Radar Grade Switching Power

Class-leading internal power module. Supporting highly accurate operations

Noise Reduction

Eliminate electrical noise with the highly permeable EMI absorber

Gilded LAN Ports

Deliver the purest signal to your devices with the Gilded RJ connectors

Gold Plated Banana Terminal Grounding

Reserved for connecting to a ground box and removing power noise

LED Lights

Flexibly keep port status lights on or off while enjoying your music

TCXO - Clock Signal

Highly accurate clock reduces network latency issues and jitter impact

Introducing the Bonn N8 Pro

Watch the below video for a quick overview of the Bonn N8 Pro

Designed for HD Music Streaming

The Bonn N8 Pro creates a HiFi audio zone to effectively separate your audio devices from household traffic. Eliminates noise, transmits the highly accurate timed data, reduces the impact from network broadcasting storm and latency caused by bandwidth-intensive activities from PC and other devices.

Exclusive Clock Module, TCXO: Silent Angel’s 0.1ppm TCXO (Temperature Compensation Crystal Oscillator) is 50 times more precise than a general Crystal Clock, lowering latency issues and jitter effects.

Jitter Effect Improvement: When transmitting high-frequency network packets, distortion is a common effect. Bonn N8 Pro is effectively able to lower this to 369ps whereas other general switches present at 705ps.

Optimized For Music Applications

Optimized for Roon infrastructure. e.g. Serve a network composed of Rhein Z1 as a Roon Core server, and Munich M1 as Roon Ready players.
Optimized for high-resolution streaming services such as Tidal, Qobuz, Spotify and more.
Optimized for playing music collections from NAS (Network Attached Storage), works well with multiple brands such as QNAP, Synology, WD NAS.

Further Upgrade's

Power Source
Connect to the Forester F2 linear power supply (supplying dual 12 DC outputs) to further improve its power source.
Vibration Suppression
Minimize vibration and reduce noise by using S28 stainless steel stands.

Product Specification


Available Model	- N8 PRO-CLK (with an 10MHz external World Clock input) - N8 PRO (without external World Clock input)
Color	Black
Power Input	IEC (AC) 100-240V, 50/60Hz (DC) 12V/0.8A at max
Power Consumption	10 Watt at max
Ethernet Port	Pure gold-plated 1GbE RJ45 port x 8
Interface	Clock input switch x 1 (external/internal) - BNC interface 10MHz external World Clock - Silent Angle specialized TCXO clock module LED indicator switch x 1 - Control the on/off status of LAN port LED Grounding Port x 1 - Connect to a ground box to make the signal quality more purer and precise without interference
LED Indicator	Power LED (Green) x 1 at the front panel Port Status LED x 8 (Light on when linked; Flash when it's active) at the rear panel) Green: 1000Mbps; Amber: 100Mbps
Temperature	Operating: 32 ~ 86 °F Storage: -4 ~ 158 °F
Humidity	Operating: 10% ~ 90% RH (non-condensing) Storage: 5% ~ 95% RH (non-condensing)
Dimensions	17.37 (W) inch x 2.05 (H) inch x 6.89 (D) inch
Weight	5.74 lbs
The Quick Product Guide can be downloaded here.
