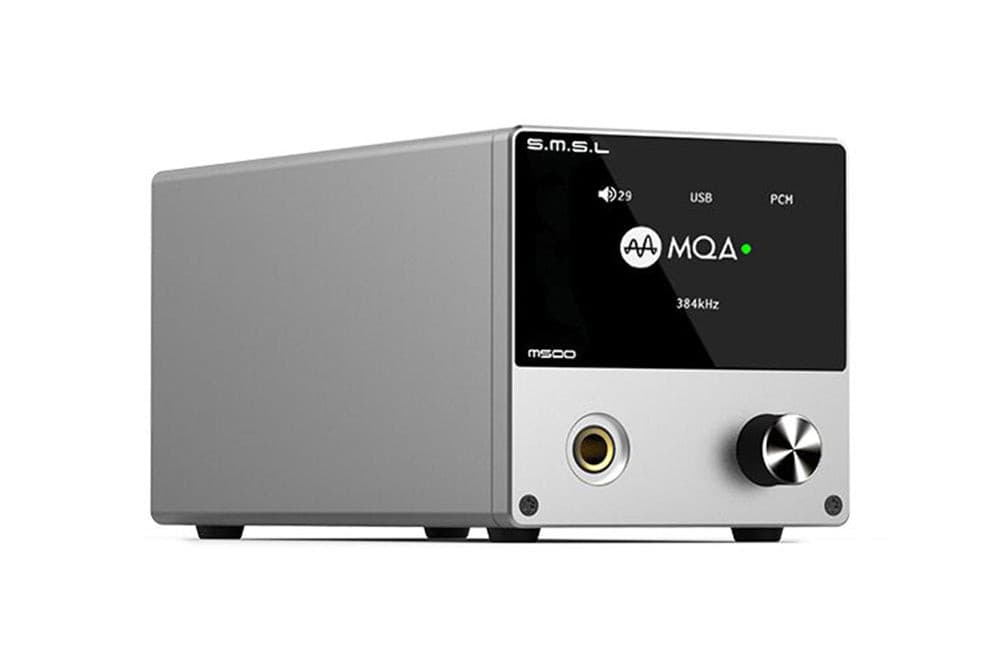

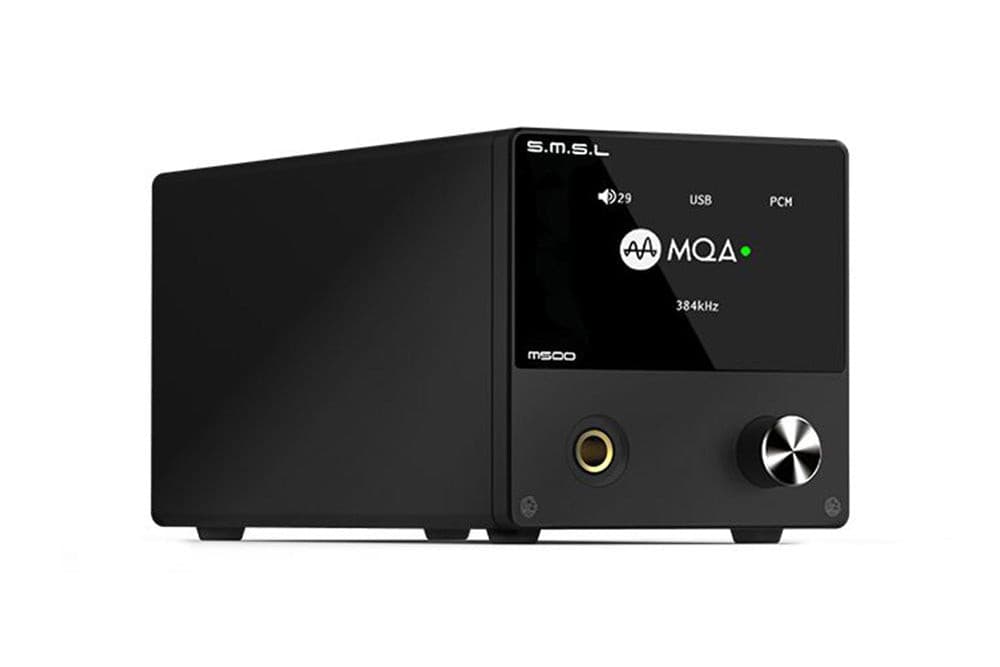

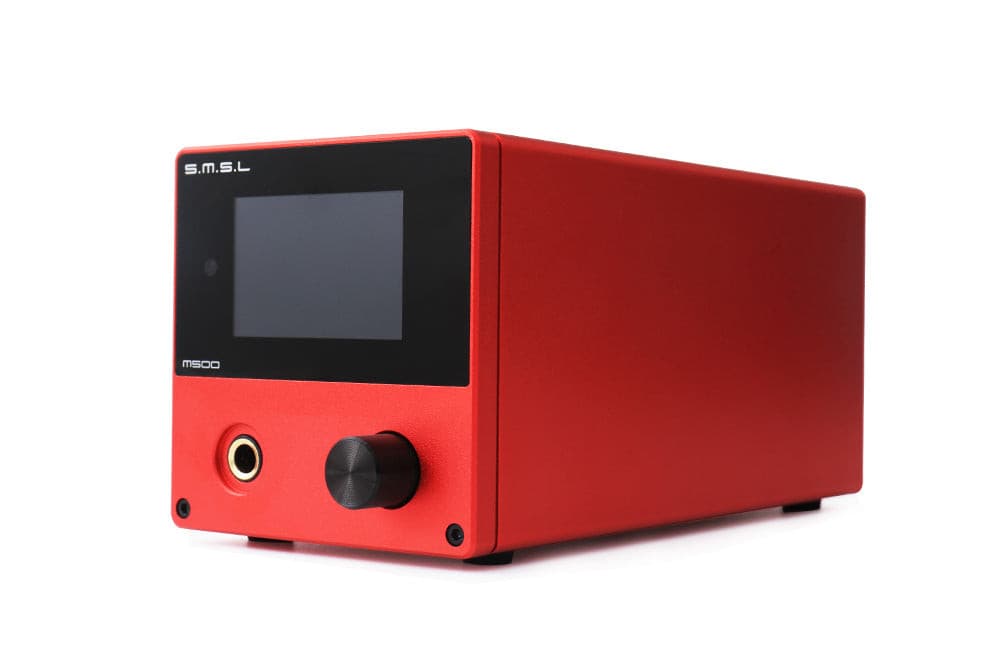

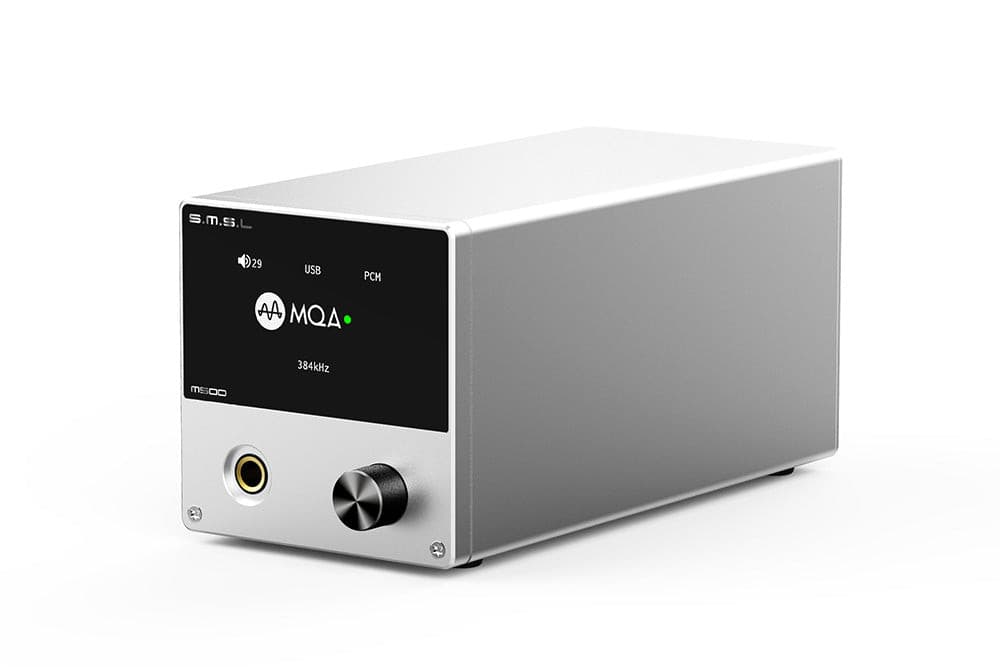

S.M.S.L M500 ES9038PRO Desktop DAC & Headphone Amplifier
$650.99 AUD
Skip to product information
S.M.S.L M500 ES9038PRO Desktop DAC & Headphone Amplifier
$650.99 AUD
Pickup available at Dispatch
Usually ready in 24 hours
✔ Free Shipping Australia-Wide
Orders ship fast from Melbourne
Dispatched same or next business day
Product Details
Features:
Supports MQA decoding;
The top performance D/A chip ES9038PRO from ESS Technology;
The high-performance power supply chip ES9311, the noise of ES9311 is as low as
1uVrms, to push ES9038PRO to the limit;
XMOS XU-216, true 32bit audio processing, supports DoP and Native DSD, and reaches
32bit/768kHz and DSD512;
Ultra-low phase noise and optimized clock processing circuit are used to achieve
ultra-low clock jitter;
All inputs support DSD streaming, including coaxial and optical (DoP64);
Independent headphone volume design, does not interfere with the preamp volume;
Special design of discrete components high current headphones amplifier for higher
damping factor;
Use tempered glass display panel for higher light transmission and longer service life;
Built-in shielded, low noise power supply processing, while improving power efficiency,
lower power consumption;
High quality gold-plated input and output jacks;
3 high-end dual op-amps OPA1612 and a lot of audio grade components are used;

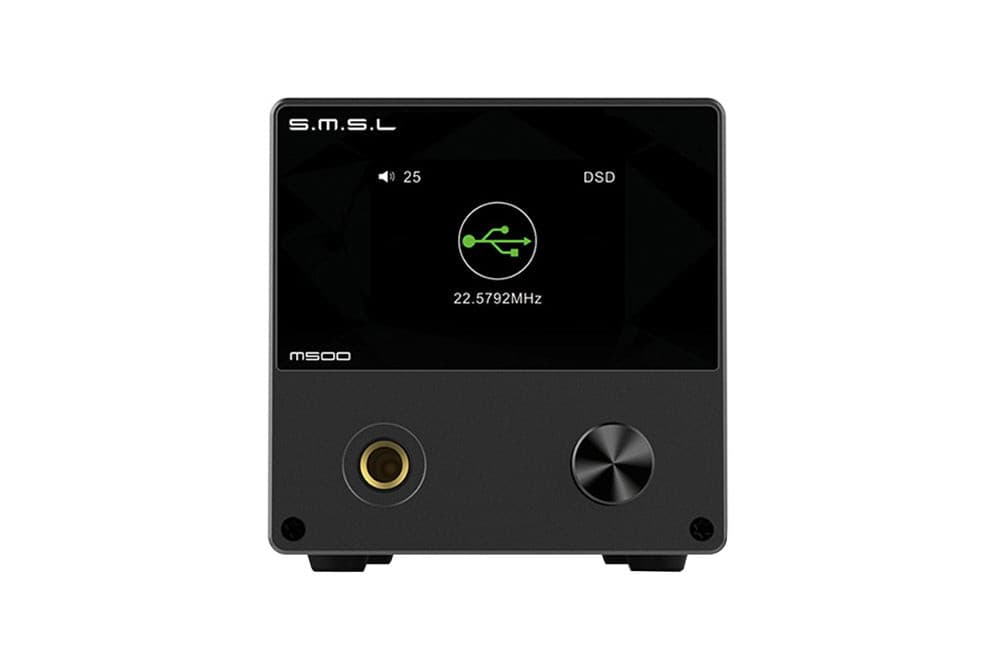

2.19 inch LG TFT LCD display;
JAS Hi-Res certification;
Equipped with remote control and full-function remote control.
Specifications:

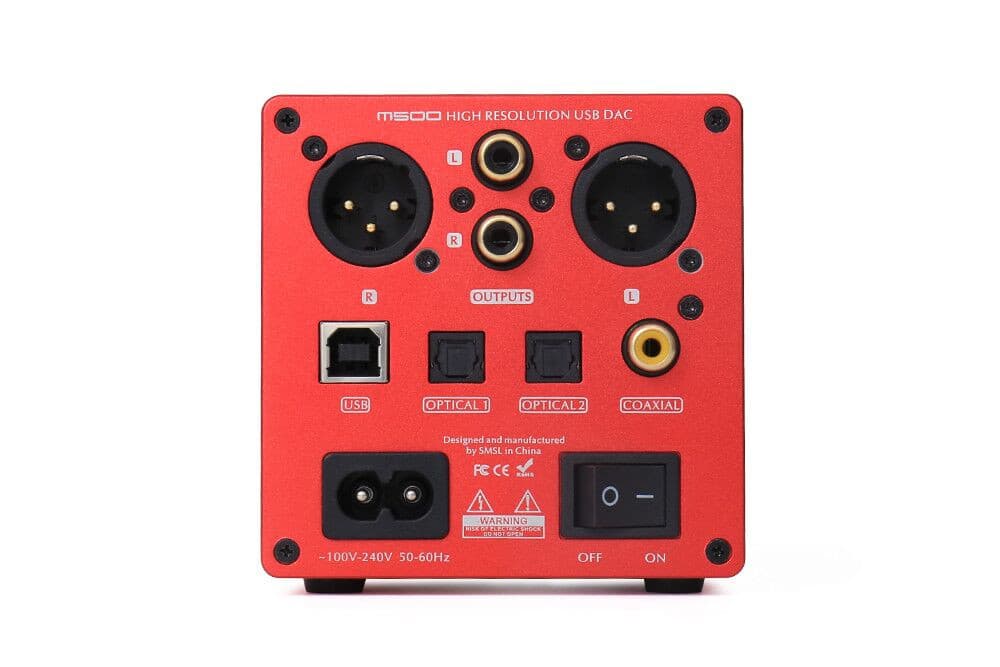

Input： USB / Opticalx2 / Coaxial
Output ：RCA Headphone Amplifier/ RCA /XLR
THD+N ：0.00015%
Dynamic range ： XLR 125dB
RCA 120dB
SNR ：120dB
USB transmission ：Asynchronization
USB compatibility：Windows 7 / 8 / 8.1 / 10, Mac OSX10.6 or Later、Linux
Bit depth ：USB 1bit， 16 ~ 32bit
Optical / Coaxial 1bit， 16 ~ 32bit
Sampling rate ：USB PCM 44.1 ~ 768kHz
DSD 2.8224 ~ 22.5792MHz
Optical / Coaxial PCM 44.1 ~ 192kHz
DSD DSD64(DoP)
Headphone amplifier output power：570mW(32Ω)
290mW(64Ω)
125mW(150Ω)
65mW(300Ω)
Power Consumption ：5W
Standby power ： <0.5W

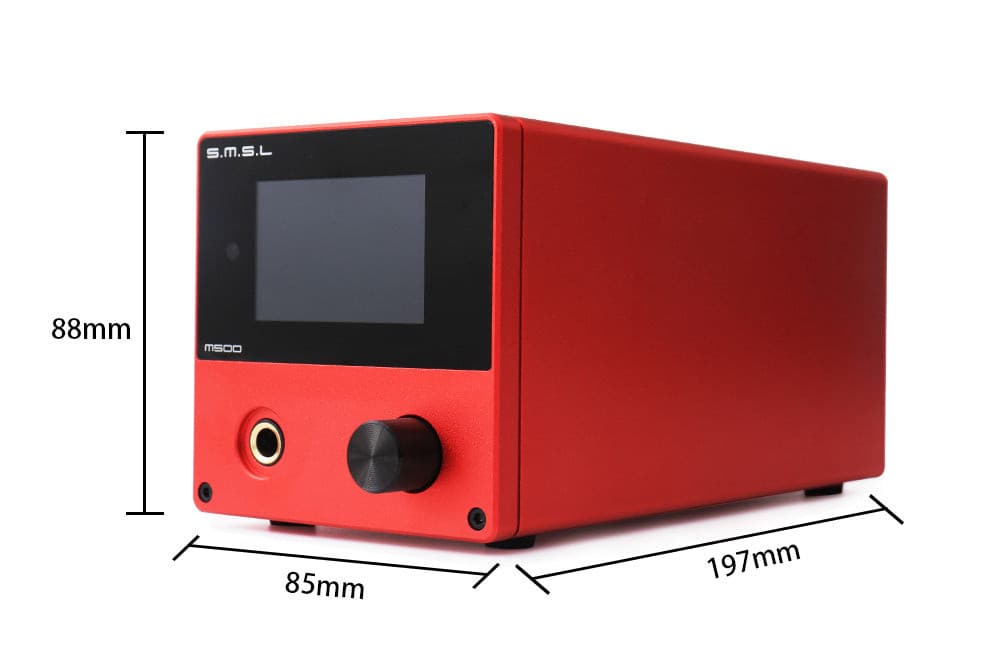

Size ： 85x88x197mm (WxHxD)
Weight ：0.91kg
