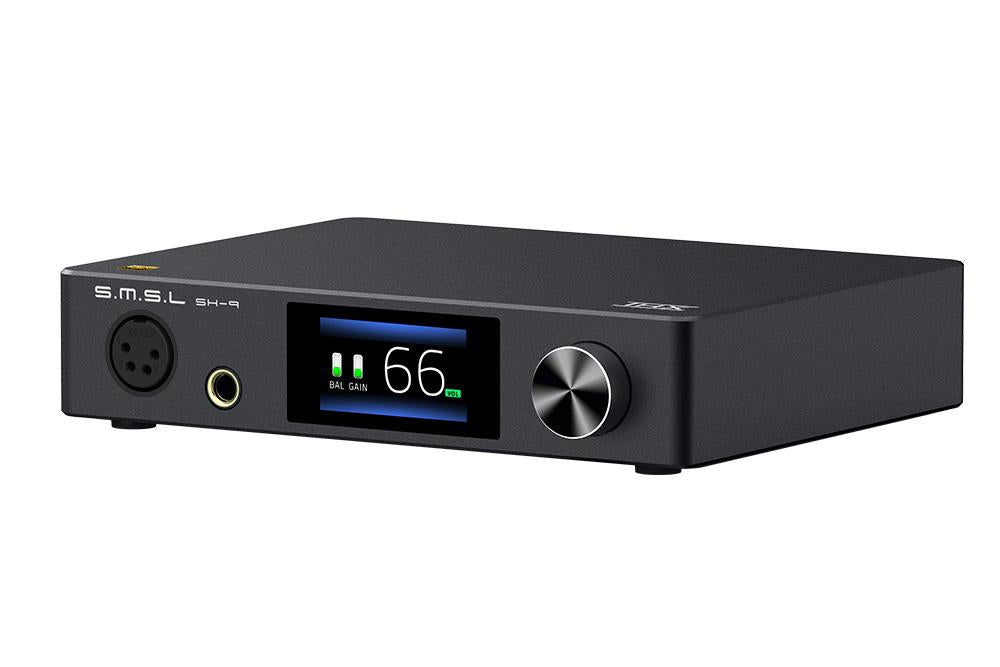

SMSL SH-9 THXAAA Technology Ultra High Performance Fully Balanced Headphone Amplifier
Pickup available at Dispatch
Usually ready in 24 hours
✔ Free Shipping Australia-Wide
Orders ship fast from Melbourne
Dispatched same or next business day
Product Details
SMSL SH9 THXAAA Technology Input Balanced Headphone Amplifier
Audiophile Store, Australia Stock, Authorised Resellers, Local Warranty, Full Support
Features
*THXAAA-888 Headphone Amplifier with THX AAA Technology
*6 Watts into 16 Ohm,3 Watts into 32 Ohm Headphones with lowest THD+N
*0.1Hz to 500kHz(-3dB) Frequency Response
*SNR>137dB!
*THD<0.00006%
*Ultra-Compact Design, Perfect for Desktop Systems
*Balanced Stereo Headphone Output
*Balanced Stereo Line Input
*High Precision Resistors for Temperature Stability
*Pop-less Design with High-Quality Relays
*High precision and low noise 256 level relay volume control; In actual use, in order to make the volume more linear, the extra levels are shielded.
*2 Positions Switchable Gain Control
*Fully Protection with DC, Over-Voltage, Over-Current, Short-Circuit and Thermal Protection on Headphone Amplifier
*High-Eficiency Ultra-Low-Noise Power Supply
*1.9 inch LCD display.
Specifications
Audio Section:

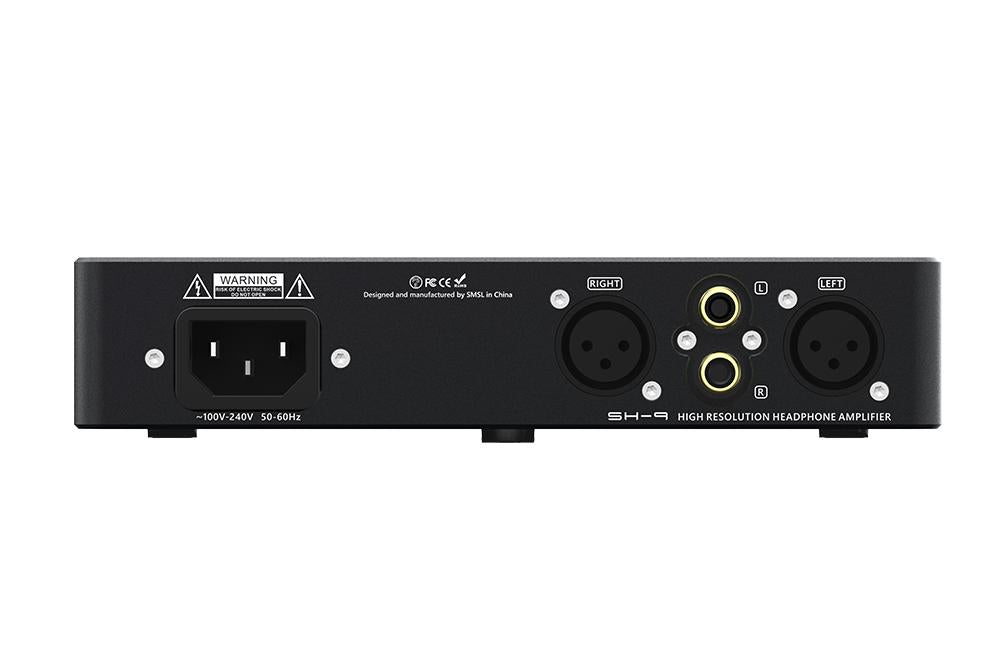

Inputs:Balanced x1, Unbalanced x1
Outputs:Balanced x1, Unbalanced x1
Output Power :6W x 2(16Ω)
3W x 2(32Ω)
440mW x 2 (300Ω)
220mW x 2 (600Ω)
SNR:137dB, A-Weighted
Output Noise:1.9uV, A-Weighted
THD+N:-123dB, 0.00006% (A-Weighted)
THD+N:-117dB, 0.00013% (20-20kHz, 32Ω,-3dB)
THD:-125dB, 0.00006%(1kHz, 16Ω, -3dB)
Input Impedance:47kΩ
Output Impedance:Near 0Ω
Frequency Response:0.1Hz-500kHz(-3dB)
Gain:Low(+0dB), High(+10dB)
General Section:
Power supply voltage/frequency: AC100-240V, 50-60 Hz
Power consumption(EN60065):24W
Power consumption in standby mode:<0.1W
Size:187.5x154x40(mm)
Packing size: 282x232x79(mm)
Weight:790g
