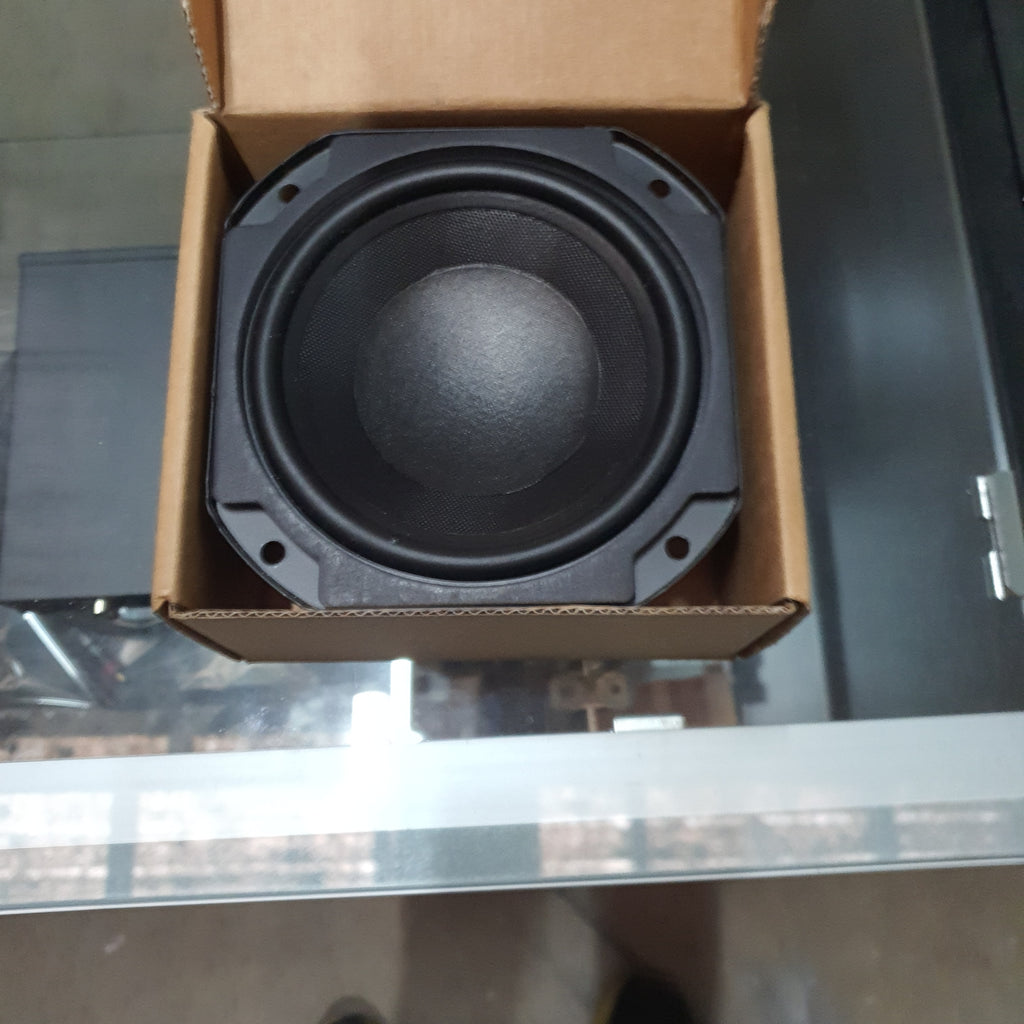

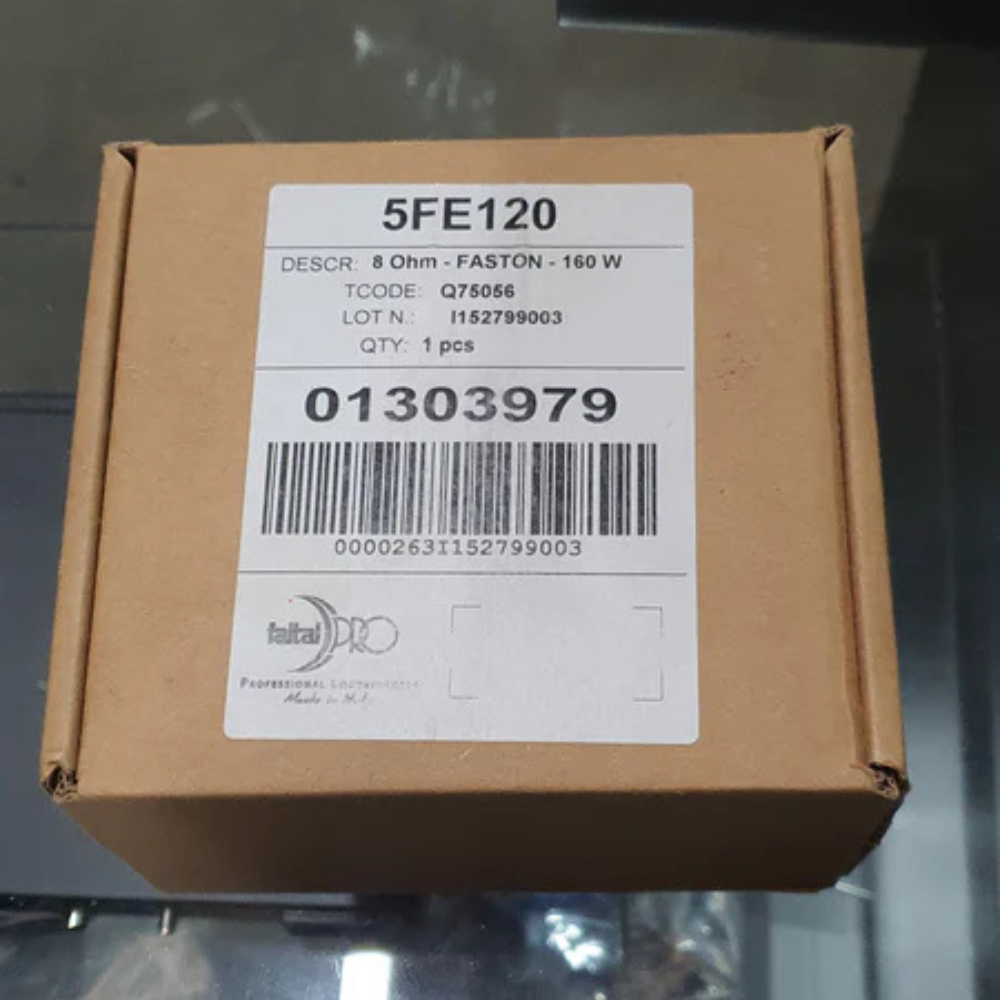

FAITAL 5FE120 (5" LF LOUDSPEAKER, FERRITE, FASTON, 8 OHM)
$70.00 AUD
Skip to product information
FAITAL 5FE120 (5" LF LOUDSPEAKER, FERRITE, FASTON, 8 OHM)
$70.00 AUD
✔ Free Shipping Australia-Wide
Orders ship fast from Melbourne
Dispatched same or next business day
Product Details
FAITAL 5FE120 (5" LF LOUDSPEAKER, FERRITE, FASTON, 8 OHM)
FAITAL 5FE120-01303979 (5" LF LOUDSPEAKER, FERRITE, FASTON, 8 OHM)
NOMINAL SPECIFICATIONS
Nominal Diameter: 130 mm (5 in)
Overall Diameter: 144.8/124.5 mm (5.7/4.9 in)
Bolt Circle Diameter: 133 mm (5.24 in)
Baffle Cutout Diameter: 114 mm (4.49 in)
Depth: 71.5 mm (2.81 in)
Flange and Gasket Thickness: 6.5 mm (0.25 in)
Net Weight: 1.13 Kg (2.5 lb)
Shipping Box (Single Carton Box - 8 units): 302 x 275 x 186 mm (11.9 x 10.8 x 7.3 in)
Shipping Weight (8 units): 10.2 Kg (22.5 lb)
TECHNICAL PARAMETERS
Nominal Impedance: 8 Ohm
Minimum Impedance: 6.2 Ohm
AES Power Handling: 80 W
Maximum Power Handling: 160 W
Sensitivity (1W/1m): 88 dB
Frequency Range: 63-6300 Hz
Voice Coil Diameter: 32 mm (1.25 in)
Winding Material: Cu
Former Material: Kapton
Winding Depth: 12.5 mm (0.49 in)
Magnetic Gap Depth: 6 mm (0.24 in)
Flux Density: 1 T
Magnet: Ferrite Ring
Basket Material: Steel
Demodulation: Aluminum Ring
Cone Surround: Half Roll
NET Air Volume filled by Loudspeaker: 0.3 dm^3 (0.011 ft^3)
Spider Profile: 1x constant height waves
